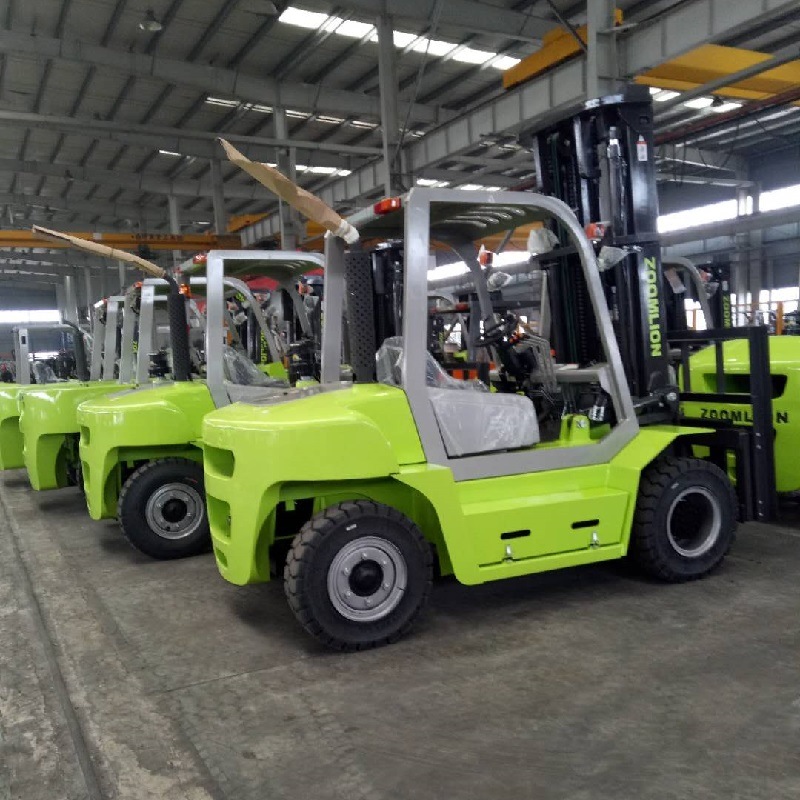

Zoomlion 7 Ton Diesel Forklift Fd70s with Sideshifter

Zoomlion 7 Ton Diesel Forklift Fd70s with Sideshifter image

Get a Quote Email to us

Product Description

Basic Info.

Model NO.

FD70S

Fuel

Diesel

Load center

>500mm

Lift height

3000~5000mm

Condition

New

Overall Width

2000mm

Fuel Tank

140L

Over Height

2510mm

Transport Package

Container Shipment

Specification

1370*150*70mm

Trademark

Maxizm

Origin

China

HS Code

8429521200

Production Capacity

10000 Units/Month

Product Description

Zoomlion 7 Ton Diesel Forklift Fd70s with sideshifter

• Energy efficient hydraulic system, reducing fuel consumption.
Optimized Design
• Optimized handle layout effectively reduces arm fatigue.
• Dual handle switch configuration design ensures simple and comfortable operation.
• Wide step pedals and cabin reduce operator fatigue.
• Increased speed to provide greater operational efficiency.
Safe &Efficient
• Reinforced mast structure.
• Equipped with electronic engine turn-off control system.
• Lifting system cushioning reduces impact and vibration of the frame.
• Reliable overhead guard design that enhances the strength of the roof and provide greater safety.
• Hydraulic system with flow reduction and mono-directional values to ensure operational safety.
• Optional high profile sensor system that cuts power when the operator leaves the seat to prevent accidents.

Characteristics	Power			diesel
	Rated Capacity		kg	7000
	Center of load		mm	600
	Lifting height		mm	3000
	Free lifting height		mm	200
	Forks L×W×H		mm	1370×150×70
	Tilt Forward/Backward		.	10/10
	Min.turning radius		mm	3500
	Min.ground clearance(Mast)		mm	265
	Overhead guard height		mm	2510
	Height from seat to overhead guard		mm	1045
	Front overhang		mm	684
Perf	Max.traveling speed(loaded)		km/h	22
	Max.lifting speed(loaded/empty)		mm/s	380/480
	Drawbar pull/Gradeability		kN/%	58/20
Dimensions	Overall length (without fork)		mm	3834
	Overall width		mm	2000
	Mast lowered height		mm	2585
	Mast extended height		mm	4248
Chassis	Tire	Front		8.25-20-14PR
	Tire	Rear		8.25-15-14PR
	Wheelbase		mm	2250
	Tread width	Front/Rear	mm	1470/1700
	Curb weight	None-load	kg	10200
Powertrain	Battery	Voltage/Capacity	V/Ah	(12/90)×2
	Engine	Model		XC CA6110
		Rated power	kw/r.p.m	83/2000
		Rated torque	Nm/r.p.m	450/1450
		Cylinder amount		6
		Bore×Stroke	mm	110×125
		Displacement		7.127
	Fuel tank		L	140
	Transmission			1/1 automatic transmission
	Working pressure		MPa	20

We are China Zoomlion 7 Ton Diesel Forklift Fd70s with Sideshifter manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
