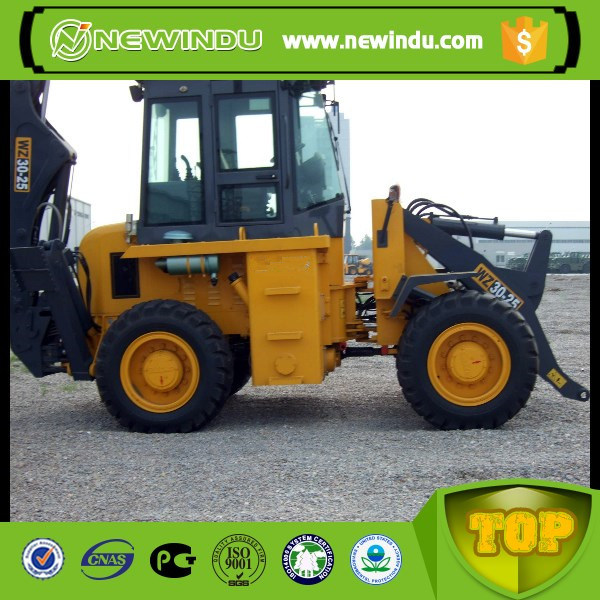

Xc870K Small Hydraulic Towable Loader Backhoe for Sale

China
                Xc870K Small Hydraulic Towable Loader Backhoe for Sale
             supplier

Xc870K Small Hydraulic Towable Loader Backhoe for Sale image

Get a Quote Email to us

Basic Info.

Model NO.
XC870K

Load and Unload Mode
Front Discharge

Walking Mode
Wheeled

Type
Medium-sized Loader

Bucket Capacity
0.8-1.2 Cbm

Operating Weight
8400kg

Dumping Reach
745 mm

Dumping Clearance
2570 mm

Transport Package
Nude

Specification
8100x2366x3680 mm

Trademark
NEWINDU

Origin
China

Production Capacity
100 Units Per Month

Product Description

Mini New XT864 Backhoe Loader from Chinese Manufacturer


XT864 is a kind of the multi-functional engineering machinery incorporating and loading into an organic whole. It adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle, the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy, the forest farm, the mili tary project, and so on. It also can be used in excavating, carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise. It is the ideal model of realizing machine with multi-functions.

XT864 that the wheel type excavators a loader is to fight pair, unhitch in the front, articulate, type style excavators a loader. ·Match YTO the engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. ·The driving force excavating loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long. ·The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good. ·Excavating a part is that dyadic structure of box, load support capability are strong, the intensity is tall, the stability is good. ·The drive’s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. ·Various machines and tools such as may select and use for -in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.



Model XT864
Overall Dimension(L×W×H) 8100×2366×3680
Max. Travel Speed 21 KM/H
Wheel Base 2290MM
Tires 16/70-20
Working Oil Pump Rated Pressure 18 Mpa
Flue 150 R/Min
Engine Rated Power 60 KW
Rated Speed 2400 R/Min
Model LR4105G90
Loading Installment Bucket Capacity 0.8-1.2 CBM

Dumping Clearance 2570 MM
Dumping Reach 745 MM
Excavation Installment Digger Capacity 0.2-0.25 CBM
Max. Digging Depth 4290 MM
Max. Digging Radium 5450 MM
Drive Type 4WD
Electric System Voltage 24 V



We are China Xc870K Small Hydraulic Towable Loader Backhoe for Sale manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
