Shantui 320HP Heavy Crawler Bulldozer SD32 with Rops Cab
Shantui 320HP Heavy Crawler Bulldozer SD32 with Rops Cab image
- Overview
- Product Description
- Product Parameters
- Detailed Photos
- Company Profile
Basic Info.
Product Description
1. Introduction:
SD32 bulldozer is the first model of SHANTUI new generation SD32 Series, a series of high-performance hydraulic machinery bulldozer. It is one of the representative of SHANTUI advanced technology, which conforms of the EPA Tier4F/EU Stage IV emissions requirements, featuring excellent production performance, simple operation, easy maintenance, safe and comfortable cab (ROPS/FOPS) with A/C, control and gearshifting with joystick, undercarriage – sealed and self-lubricanting.
This bulldozer has high productivity and low operating cost. It is an indispensable high performance equipment in the construction of mines and water conservancy projects.
2.Parameter:
| Parameter name | SD32 (Standard version) | SD32C (Coal version) | SD32W (Rock version) | SD32D (Desert version) | SD32R (Environmental sanitation version) |
| Performance parameters | |||||
| Operating weight (Kg) | 40200 | 40500 | 40900 | 39500 | 37100 |
| Ground pressure (kPa) | 97.7 | 98.4 | 99.4 | 96 | 90.2 |
| Engine | |||||
| Engine model | WP12/QSNT-C345 | QSNT-C345 | WP12/QSNT-C345 | QSNT-C345 | QSNT-C345 |
| Rated power/rated speed (kW/rpm) | 257/2000,258/2000 | 257/2000 | 258/2000,257/2000 | 257/2000 | 257/2000 |
| Overall dimensions | |||||
| Overall dimensions of machine (mm) | 8650*4130*3760 | 8650*4755*3760 | 8650*4130*3760 | 8650*4130*3760 | 8650*4332*3760 |
| Driving performance | |||||
| Forward speed (km/h) | F1:0-3.6 F2:0-6.6 F3:0-11.5 | F1:0-3.6 F2:0-6.6 F3:0-11.5 | F1:0-3.6 F2:0-6.6 F3:0-11.5 | F1:0-3.6 F2:0-6.6 F3:0-11.5 | F1:0-3.6 F2:0-6.6 F3:0-11.5 |
| Reversing speed (km/h) | R1:0-4.4 R2:0-7.8 R3:0-13.5 | R1:0-4.4 R2:0-7.8 R3:0-13.5 | R1:0-4.4 R2:0-7.8 R3:0-13.5 | R1:0-4.4 R2:0-7.8 R3:0-13.5 | R1:0-4.4 R2:0-7.8 R3:0-13.5 |
| Chassis System | |||||
| Center distance of track (mm) | 2140 | 2140 | 2140 | 2140 | 2140 |
| Width of track shoes (mm) | 560/610/660/710 | 560/610/660/710 | 560/610/660/710 | 560/610/660/710 | 560/610/660/710 |
| Ground length(mm) | 3150 | 3150 | 3150 | 3150 | 3150 |
| Tank capacity | |||||
| Fuel tank (L) | 640 | 640 | 640 | 640 | 640 |
| Working device | |||||
| Blade type | Straight tilting blade , Angle Blade and Semi-U blade | Semi-U coal blade and coal U-blade | Rock straight tilting blade, rock angle blade and rock semi-U blade | Straight tilting blade , Angle Blade and Semi-U blade | Sanitation blade |
| Digging depth (mm) | 560/630/560 | 560 | 560/630/560 | 560/630/560 | 560 |
| Ripper type | Single-shank three-shank | Single-shank three-shank | Single-shank three-shank | Single-shank three-shank | — |
| Ripping depth (mm) | 1,250 (Single-shank) and 842 (Three-shank) | 1,250 (Single-shank) and 842 (Three-shank) | 1,250 (Single-shank) and 842 (Three-shank) | 1,250 (Single-shank) and 842 (Three-shank) | — |

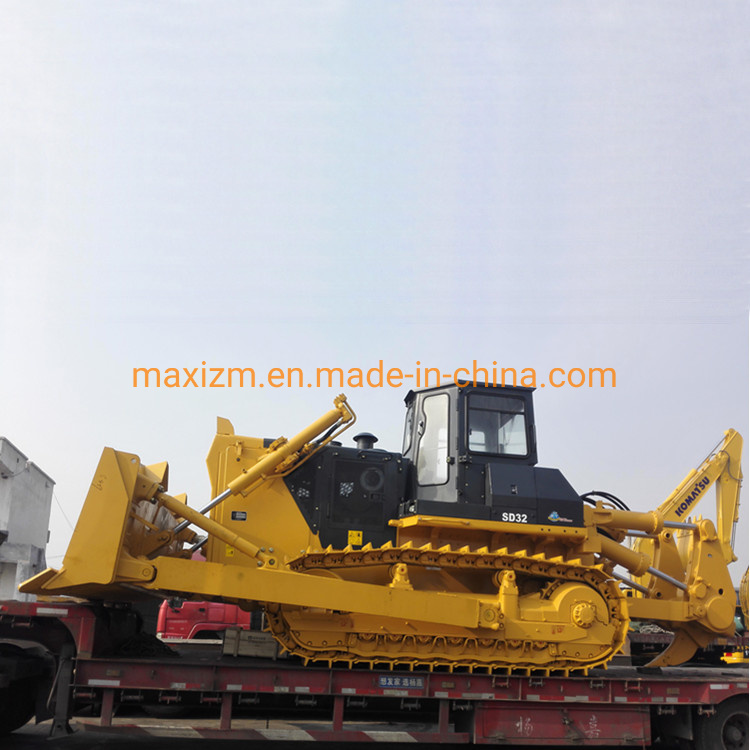

3.Clear Photo:
4.Packing:
5.Our Company:
We supply all kinds of Machinery & Equipment of most Chinese big brands to global market with reasonable price and best service.
1. Professionally export construction machinery and spare parts for more than 10 years to over a hundred countries.
2. Experienced in customs clearance in different ports(countries). Clients type has big contractors, tender, private,rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.
We are China Shantui 320HP Heavy Crawler Bulldozer SD32 with Rops Cab manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Bulldozer with Ripper, New Bulldozer with Rops Cabin, Shantui Bulldozer with Single Shank RipperSimilar Or Related
