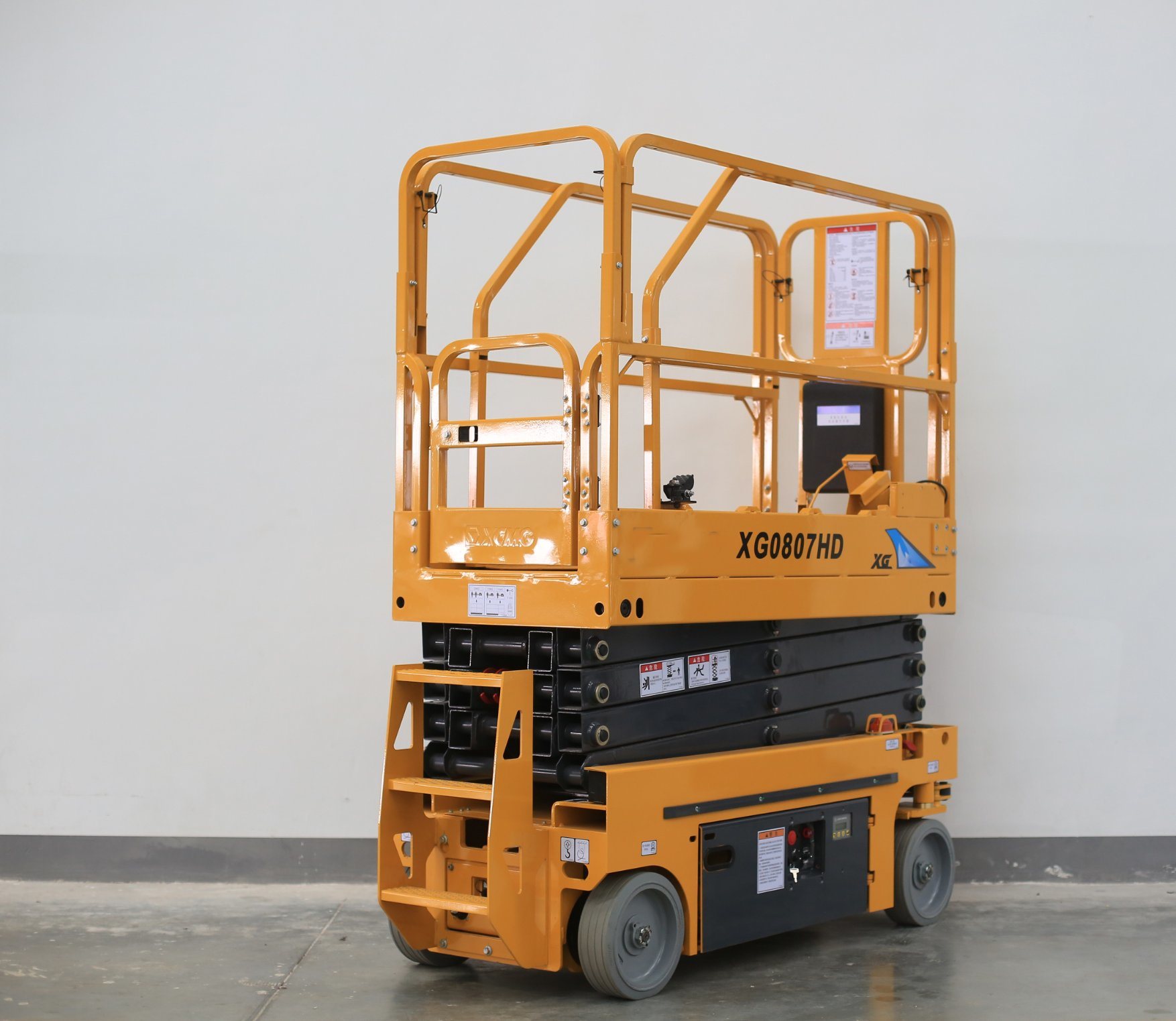

Self Propelled 240kg 3m Aerial Work Platform Movable Scissor Lift 300kg Elevaction Vertical Scissor Telescopic Lift Price Automatic Walking with Battery
Self Propelled 240kg 3m Aerial Work Platform Movable Scissor Lift 300kg Elevaction Vertical Scissor Telescopic Lift Price Automatic Walking with Battery image
Basic Info.
Product Description
According to the demand, the scissor lift platform can be selected as two-phase, three-phase, battery and diesel engine as the lifting power, and explosion-proof motors and electrical appliances can also be selected in special places. The control mode of the elevator is electric up and down control, manual and electric dual-purpose or remote control, which can still be used in case of power failure. This series of elevators have the characteristics of flexible movement, stable lifting, large load capacity and convenient operation. Mobile elevators are widely used in various industries such as factories, grain depots, airports, gas stations, organs, docks, field power, street lamp maintenance and building decoration.
Technical parameter for 6m
| Specification | Unit | 6M |
| safe working load | Kg | 320 |
|
Kg | 113 |
| Max. working height(H2) | m | 8.0 |
| Max. Platform height(H1) | m | 6.0 |
| Whole machine length | mm | 2470 |
| Whole machine width | mm | 1150 |
| Whole machine height(Fence not folded) | mm | 2220 |
| Whole machine height(fence fold)(H) | mm | 1680 |
| The platform size | mm | 2270×1110 |
Platform extension size |
mm | 900 |
Minimum ground clearance (close up) Minimum ground clearance (close up) |
mm | 100 |
| Min ground clearance(Lifting state) | mm | 19 |
| wheel base | mm | 1895 |
| Minimum turning radius (inner wheel) | mm | 0 |
| Minimum turning radius (outer wheel) |
mm | 2200 |
| Lifting motor | V/Kw | 24/3.3 |
| Travel speed(close up) | Km/h | 3.5 |
| Travel speed(lifting) | Km/h | 0.8 |
| up/down speed | sec | 28/38 |
| battery | V/Ah | 4x6V/230 |
| charge | V/A | 24/30 |
| Maximum climbing ability | % | 25 |
| Maximum allowable working Angle
|
. | 2-3 |
| wheel | mm | φ381×127 |
| Total weight | Kg | 2040 |
Technical parameter for 14m
| Specification | Unit | 14M |
| Safe working load | Kg | 200 |
|
Kg | 113 |
| Max. working height(H2) | m | 16 |
| Max. Platform height(H1) | m | 14 |
| Whole machine length | mm | 2855 |
| Whole machine width | mm | 1320 |
| Whole machine height(Fence not folded) | mm | 2580 |
| Whole machine height(fence fold)(H) | mm | 1680 |
| The platform size | mm | 2635×1100 |
Platform extension size |
mm | 900 |
Minimum ground clearance (close up) Minimum ground clearance (close up) |
mm | 100 |
| Min ground clearance(Lifting state) | mm | 19 |
| wheel base | mm | 2220 |
| Minimum turning radius (inner wheel) | mm | 0 |
| Minimum turning radius (outer wheel) |
mm | 2200 |
| Lifting motor | V/Kw | 24/4.5 |
| Travel speed(close up) | Km/h | 3.5 |
| Travel speed(lifting) | Km/h | 0.8 |
| up/down speed | sec | 28/38 |
| battery | V/Ah | 4x12V/1285 |
| charge | V/A | 24/30 |
| Maximum climbing ability | % | 25 |
| Maximum allowable working Angle | . | 2-3 |
| wheel | mm | φ381×127 |
| Total weight | Kg | 3300 |
We are China Self Propelled 240kg 3m Aerial Work Platform Movable Scissor Lift 300kg Elevaction Vertical Scissor Telescopic Lift Price Automatic Walking with Battery manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
