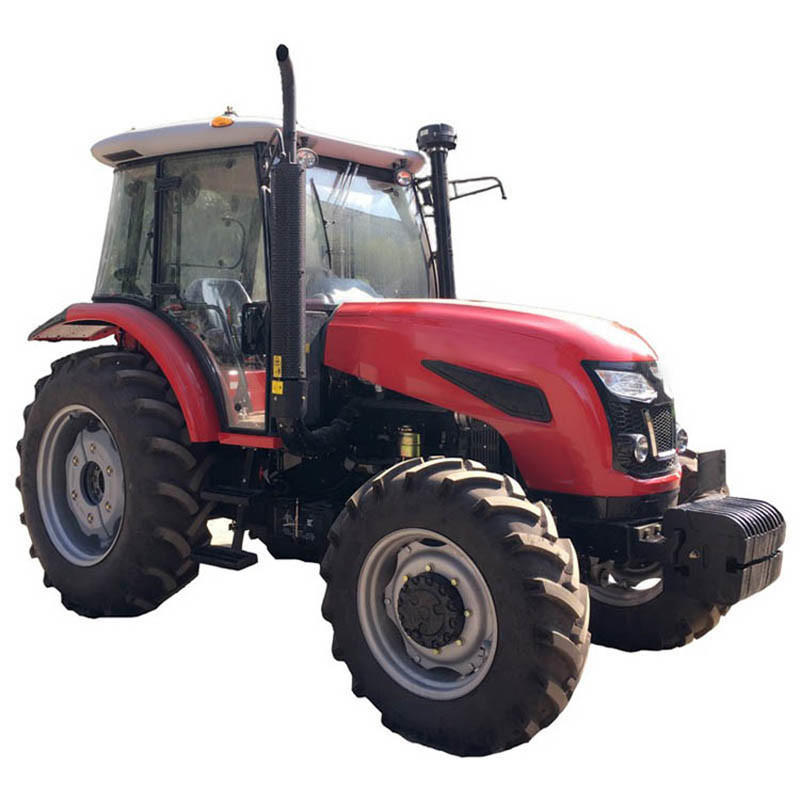

Lutong 110HP Medium Horse Cost-Effective Farm Tractor Lt1104
Lutong 110HP Medium Horse Cost-Effective Farm Tractor Lt1104 image
Basic Info.
Product Description
Features:
1. Matching Dongfanghong famous engine, good reliability, large torque reserve, low fuel consumption and high economic benefit:
2.Independent operation of double-acting clutch, high transmission capacity, reliable effect and more comfortable operation;
3.Gearbox gears are 2×(8+4), that is, 16 forward gears and 8 reverse gears, adopting meshing sleeve shift, reasonable gear matching and high working efficiency;
4.Adopt independent power output device, stable transmission and large bearing capacity;
5.Full hydraulic steering control system with independent oil circuit, flexible, reliable and labor-saving;
6.Adopt hydrostatic disc brake, large braking torque and good braking effect;
7.Adopt strong pressure lifter, independent oil supply, reliable performance of lifting system, optional multiple sets of hydraulic output:
8.The final drive adopts planetary reduction mechanism, with compact structure and large reduction ratio;
9.Brand new streamlined appearance, generous, modern and fashionable.
|
Tractor Model
|
LT1104
|
|
|
Drive Type
|
4×4
|
|
|
Overall Dimension? L×W×H(mm)
|
4650×2038×2970
|
|
|
Wheel base(mm)
|
2449
|
|
|
Front wheel tread(mm)
|
1610
|
|
|
Rear wheel tread(mm)
|
1620-2020
|
|
|
Min. ground clearance(mm)
|
379
|
|
|
Min. steering radius
|
Unilateral brake(m)
|
4.8±0.2
|
|
Not unilateral brake(m)
|
5.5±0.2
|
|
|
Min. operating weight (KG)
|
4249
|
|
|
Gearbox gears number
|
16F+8R
|
|
|
Speed
|
Forward(Kw/h)
|
0.44-33.34
|
|
Reverse(Kw/h)
|
0.59-10.31
|
|
|
Engine
|
Model
|
LR6M5ZU22/0810E
|
|
Rated power (Kw)
|
81
|
|
|
Rated speed (r/min)
|
2200
|
|
|
Tires spec.
|
Front tires
|
13.6-24
|
|
Rear tires
|
16.9-34
|
|
|
Steering Type
|
Full hydraulic front wheels steering
|
|
|
Max. lifting force( KN )
|
18.9
|
|
|
PTO
|
Type
|
Rear-mounted, Independent type
|
|
Speed (r/min)
|
760/1000 or 540/1000 or 540/760 or 760/850
|
|
|
Power(Kw)
|
65.4
|
|
|
Control type of ploughing depth
|
Height control & flotation control
|
|
|
Max. traction force (KN)
|
25.7
|
|
|
Front / rear Ballast (KG)
|
270/320
|
|
