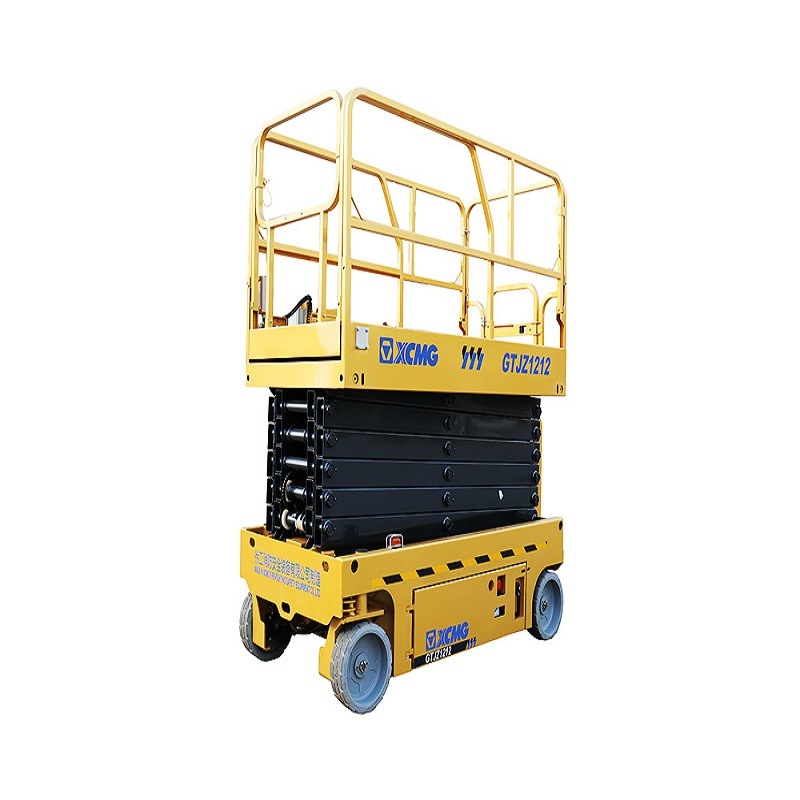

High Quality Self Propelled Man Lift Electric Scissor Lifting Platform Xga16 for Sale image
Basic Info.
Product Description
High Quality Self Propelled Man Lift Electric Scissor Lifting Platform XGA16 for Sale
Product Description
XGA26 articulated mobile elevating work platform reaches as high as 26.38m operation height. It is outstanding in terms of extending and operation range and efficient operation efficiency. The initial energy saving system according to power improves fuel efficiency to the maximum extend. It features advanced performance, precise control, safe and reliable operation, meeting demands from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.
* This vehicle is equipped with No. 1, No. 2 booms and a full section of articulated boom, available to implement all-directional aerial work through the elevating, telescopic and slewing control, and thus making the machine more flexible.
* Flexible 4WD multi-mode steering system and the leading grade
* The customized valve control system and all accurately controlled motions effectively improve the motion smoothness
* The flow anti-saturation design is applied to provide efficient and stable composite motion experiences.
* Initial power self-matching system could save the energy, dropping the comprehensive fuel consumption under each work condition by 30% or higher.
Parameters
|
Item
|
XGA16 |
|
Parameters of traveling state
|
|
|
Overall dimensions (L × W × H)
|
6.69×2.26×2.13 m
|
|
Working platform overall dimensions
|
1.83×0.76×1.15 m
|
|
Max. speed
|
6.12 km/h
|
|
Max. gradeability
|
≥30%(2WD) ≥45%(4WD)
|
|
Min. external turning radius
|
≤4.5m
|
|
Ground clearance/m (centre)
|
0.41 m
|
|
Wheelbase
|
2.1 m
|
|
Total mass
|
6900 kg
|
|
Main Operation Performance Parameters
|
|
|
Rated working height
|
16.05m
|
|
Max. platform height
|
14.05m
|
|
Max. working range
|
8.22m
|
|
Scope of luffing of No. 1 arm
|
0°~60°
|
|
Scope of luffing of No. 2 arm
|
-9°~75°
|
|
Slewing angle
|
355° discontinuous slewing
|
|
Slewing radius of turntable
|
1.145 m
|
|
Max. Load capacity
|
230 kg
|
|
Working speed
|
|
|
Platform lifting/lowering speed
|
0.1~0.3m/ s
|
|
Extending/Retracting speed of Boom No.2
|
0.1~0.3m/ s
|
|
Slewing speed
|
0.5~1r/min
|
|
Engine Parameters
|
|
|
Engine model
|
Perkins 404D-22/ Deutz D2011 L03i
|
|
Engine rated power
|
38KW/3000rpm, 36.3KW/2800rpm
|
