Heli 3.5 Tons Diesel Forklift Cpcd35 with 2 Stage 3m Mast

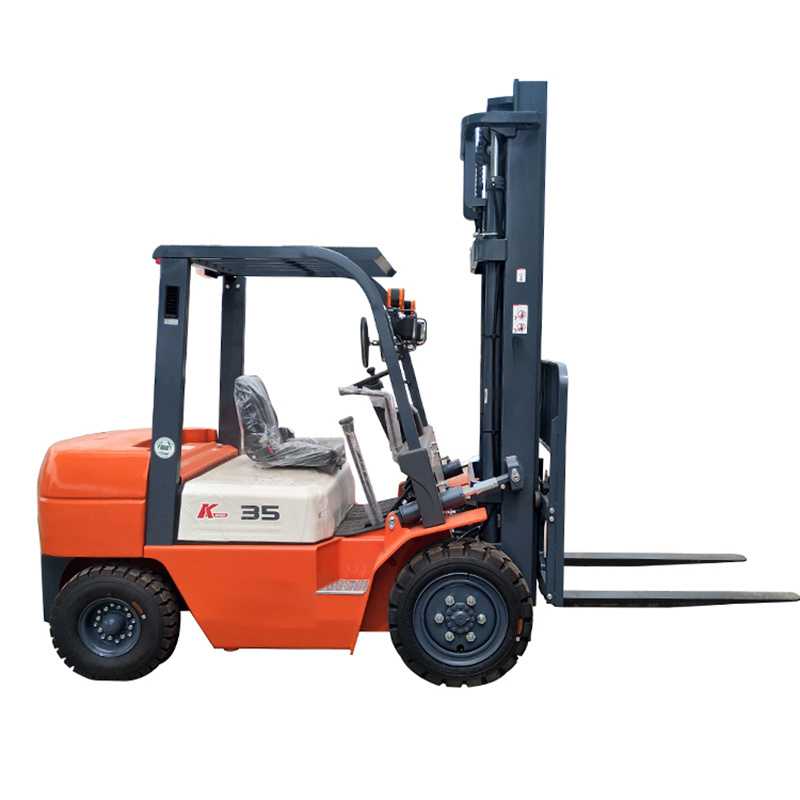

Heli 3.5 Tons Diesel Forklift Cpcd35 with 2 Stage 3m Mast image

Get a Quote Email to us

Product Description

Basic Info.

Model NO.

CPCD35

Fuel

Diesel

Load center

500mm

Lift height

3000~5000mm

Condition

New

Engine

Xinchang

Rated Power

42/2650kw

Transmission Type

Hydraulic

Transport Package

Nude or Container

Specification

2693 mm*1225 mm*2090 mm

Trademark

HELI

Origin

China

HS Code

8427209000

Production Capacity

1000 Units/Year

Product Description

Heli 3.5 Ton New Forklift Truck Cpcd35 with 3m Standard Lifting Height

1. Transmission box, drive axle and other core parts are self-made by HELI, their box manufacturing and assembly equipment has reached international advanced level. The key parts of the box are imported , and box assembly failure rate is low, and has the best quality of domestic box.

2. With attachment of various types of the masts, all use double built-in hose pulley block, and have compact structure, beautiful appearance, good passage capacity, are first adopted in our country (Patent technology).

3. All lifting mast pipeline have equipped with explosion proof safety valve to ensure the safety of the lifting process.

4. Exhaust system use corrugated pipe to realize flexible connection with frame , and reduce the vibration and noise of the whole vehicle.

5. The steering axle and the frame connection place has done the shock absorption processing, and the shock of whole vehicle has reduced by 30 %.

6. Using intake muffler can suppress the intake pulse, so can reduce the intake noise.

7. Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect.

8. Seal for the key parts of the cylinder are imported by NOK , which contribute to sealing reliable and quality stable.

9. Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life.

Applications: As lifting and transporting machineries, H2000 Series 2-3.5T Diesel / Gasoline / LPG IC Counterbalanced Forklift Trucks are widely used for loading, unloading and transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on. With other attachments of fork lift trucks., they can be used for the handling of the bulk goods and unpackaged goods.

Technical Data for CPCD35 Forklift
Speciality parameter	Model				Unit	CPCD35
	Power type					Diesel
	Rated capacity				kg	3500
	Load center			d	mm	500
	Lift height			h2	mm	3000
	Mast tilt angle (forward/backward)			α/β	Deg	6/12
	Wheel-base			L4	mm	1760
	Tread(front/rear)			b4/b5	mm	1000/980
Performance parameter	Travel brake					Hydraulic-Foot pedal
	Parking brake					Mechanical-Hand level
	Lift speed(with/without load)				mm/s	550
	Lower speed (with/without load)				mm/s	(with load)<600 ,(without load)>300
	Travel speed (with/without load)				km/h	18/19
	Max. gradeability (with load)				%	20
Power, transmission and others	Engine	Model				A495BPG
		Manufacturer				Xinchang
		Rated power			kw	42/2650
		Max. rotation			Nm/rpm	174/1800
		Displacement			L	2.98
	Battery	Voltage			V	12
	Battery	Capacity			Ah	100
	Gearbox	Transmission type				Hydraulic
	Gearbox	Gears,speed (front/rear)				I/I
	Tire	type				Pneumatic tyre
		Model	Front			28×9-15-14PR
		Model	Rear			6.5-10-10PR
Others	Self.weight				kg	4580
	Free lift height			h4	mm	165
	Fork	Thickness×Width×Length		c×b×a	mm	45×125×1070
	Overall dimensions	Overall length(without forks)		L2	mm	2830
		Overall width		b1	mm	1225
		Overall height	Extended height(mast)	h1	mm	4225
			Lower height(mast)	h3	mm	2070
			Overhead guard	h7	mm	2160
	Min. turning radius			Wa	mm	2520
	Min. under ground clearance	Under mast		m1	mm	120
	Min. under ground clearance	Center of wheel-base		m2	mm	160
