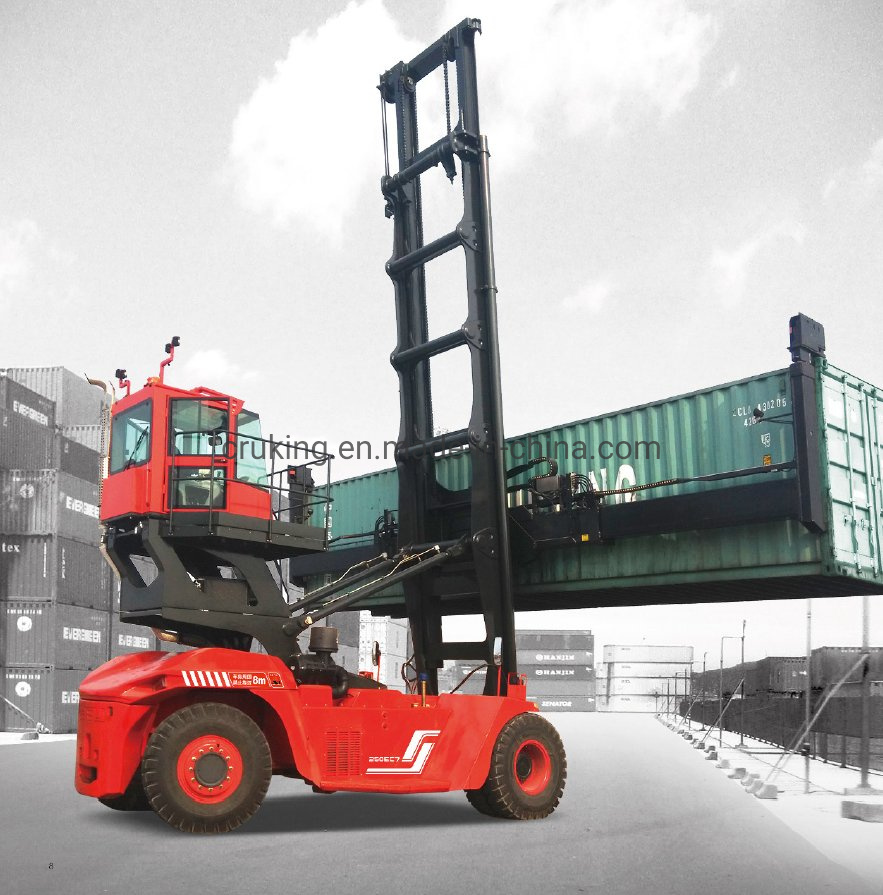

Heli 10ton Forklift Cpcd250ec Empty Container Stacker with Famous Engine
Heli 10ton Forklift Cpcd250ec Empty Container Stacker with Famous Engine image
Basic Info.
Product Description
Product Features
♦ Design Standards:
Designed by a well-known European port machinery company(harbor machinery company), the truck is synchronized with the technical level of the same period European product. The truck with higher security not only meets national standards but also EU standards (EN1459;ISO15018).
♦ Driveline:
Hydraulic Power meeting national emission standard level 3 (EU3) is assembled on the truck. This model possesses strong drive power and good weather resistance.
♦ Transmission:
The model is assembled with the originally imported transmission with smooth and high efficient gear shifting.
♦ Drive axle:
The truck is assembled with an originally imported Kessler axle with wet disc brakes specially designed for heavy trucks, meeting continuous operation in poor working conditions and maintenance-free requirements.
♦ Hydraulic system:
American hydraulic system with high efficiency and fuel economy is assembled on the truck. The innovative design of self-cleaning hydraulic cooling system extends the interval between oil changes and reduces the total cost of the machine ownership. Advanced techniques such as load sensing, dual pump converging, and small flow under high pressure are applied to save energy and reduce the cost.
♦ Electronic controlling system:
CanBus technology increases engine and transmission reliability.
♦ High strength structure components:
Heavy-duty box-type chassis makes the foundation of long-lasting high performance.
Main Specifications
| Dimensions and performance | Lifting capacity | kg | 10000 | |
| Load center | mm | 1220 | ||
| Stacking height | 7(8′6″) | 8(8′6″) | ||
| Container type | ft | 20/40 | ||
| Max lifting height in twist locks | mm | 18865 | 21365 | |
| Min lifting height in twist locks | mm | 2255/2300 | ||
| Mast tilt (backward/forward) | deg | 3/3 | ||
| Spreader side shift | mm | ±600/±500 | ||
| Lifting speed(at rated load) | mm/s | 590 | ||
| Lowering speed (at rated load/ unloaded) | mm/s | 300-600 | ||
| Overall length(with/without spreader) | mm | 6440/5980 | ||
| Width (front/rear) | mm | 4150/2800 | ||
| Height (retracted) | mm | 10370 | 11620 | |
We are China Heli 10ton Forklift Cpcd250ec Empty Container Stacker with Famous Engine manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 40FT 20FT Container Handler, Empty Container Lifter, Forklift for ContainerSimilar Or Related
