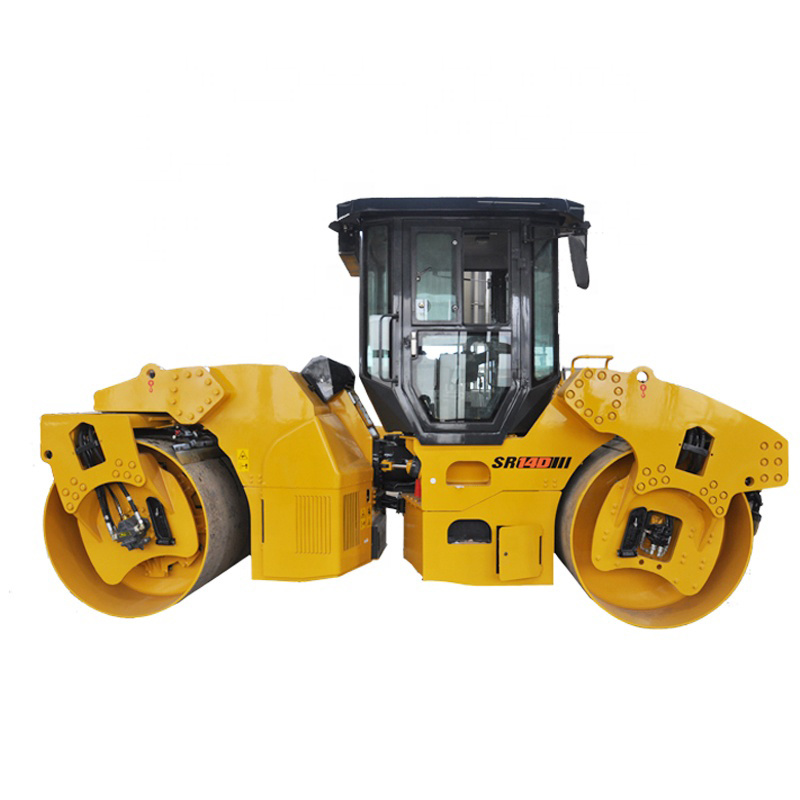

Famous Brand Shantui Road Roller Sr14mA

Famous Brand Shantui Road Roller Sr14mA image

Get a Quote Email to us

Product Description

Basic Info.

Model NO.

SR14MA

Engine Type

Diesel Engine

Travel Speed

30cm/s

Certification

EPA, CE, ISO 9001:2000, ISO 9001:2008

Condition

New

Operating Weight (Kg)

14000

Static Linear Load, Front/Rear (N/Cm)

329/329

Working Width (mm)

2130

Minimum Turning Radius (mm)

1300

Rated Power (Kw)

113

Rated Speed (Rpm)

2200

Transport Package

Nude Packing or by Container

Specification

5208*2297*3060mm

Trademark

cruking

Origin

China

Product Description

Official Manufacturer SHANTUI 14 Ton Vibratory Double Drum Road Roller SR14D With Good Price

Contact Way

Product Overview

This new generation high-frequency electronically controlled double-drum vibratory road roller adopts the modular frame structure and the inclined drum support, featuring prominent quality and high efficiency. This product is applicable for the road base layer and medium and small filling projects and is one ideal machine for pavement of concrete roads. It can work with spreader to sufficiently play the comprehensive advantages of complete equipment set. Therefore, it’s an ideal machine for the projects of high-grade roads, modern airports, ports, and large parking lots.

Product Paramenters

MODEL		Dual Drum Vibratory Roller Series
MODEL		SR13D	SR14D-3
Operating weight (kg)		13000	14000
Axle load, front (kg)		6500	7000
Static linear load, front/rear (N/cm)		300/300	329/329
Working width (mm)		2130	2130
Minimum turning radius (mm)		3870/6000	5838/7968
Drum diameter (mm)		1250	1300
Vibration frequency, high amplitude/low amplitude (Hz)		50/50	51/67
Rated amplitude,high/low (mm)		0.66/0.36	0.8/0.3
Centrifugal force, high/low (KN)		160/86	170/112
Steering angle (°)		±23	±30
Oscillating angle (°)		±12	±7
Maximum climbing ability (%)		30	30
Forward speed (km/h)	1	0-10	0-6
	2	–	0-8
	3	–	0-12
	4	–	–
Reverse speed (km/h)	1	0-10	0-6
	2	–	0-8
	3	–	0-12
	4	–	–
Engine model		4BTAA3.9-C	QSB4.5
Rated power (kW)		93	113
Rated speed (rpm)		2200	2200
Padfoot, number		–	–
Height of the padfoot (mm)		–	–
Overall length (mm)		5775	5208
Overall width (mm)		2225	2297
59 Overall height (mm)		3135	3060

Detailed Photos

Company Profile

We are China Famous Brand Shantui Road Roller Sr14mA manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
