Product Description

Basic Info.

Model NO.

QY160K

Type

Straight Arm

Max. Lifting Height

61m

Rated Lifting Moment

5252.8kn.M

Span

8.0m

Transport Package

Nude Packing by Roro Shipment

Specification

160ton

Trademark

NEWINDU

Origin

China

HS Code

8705109100

Production Capacity

100sets/Month

Product Description

Factory Qy160K Truck Crane Videos for Sale

Sales Manager
Evelyn Chen

Product Description
Powerful Lifting Capacity

Truck crane has four-section boom of high strength steel structure and optimized U-shaped cross section with max.lifting capacity of 25t, full-extended boom length of 33.5m, max.lifting height including jib of 42m, reduce weight and improve safety significantly.

Jib mounting angles are 0°, 15°, and 30°, which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.

Efficient & Unique Hydraulic System

Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design guarantees smooth braking operation.

Intelligent Electronic Control

Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.

The Load Moment Limiter

Equipped with the comprehensive intelligent protection system is used with accuracy within 3%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.

More Safe Devices

Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.

Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.

Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.

Dimension	Unit	QY160K
Overall length	mm
Overall width	mm
Overall height	mm
Weight
Total weight in travel	kg	54900
Front axle load	kg
Rear axle load	kg
Power
Engine model		OM460LA.E3A/1
Engine rated power	kW/(r/min)	360/1800
Engine rated torque	N.m/(r/min)
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	26
Min. ground clearance	mm	300
Approach angle	°	20
Departure angle	°	14
Max. grade ability	%	40
Fuel consumption for 100km	L	75
Main performance
Max. rated total lifting capacity	t	160
Min. rated working radius	mm
Turning radius at turntable tail	m
Max. lifting torque	kN.m	5253
Base boom	m
Fully extended boom	m	61.4
Fully extended boom+ jib	m	88.6
Longitudinal outrigger span	m	7.8
Lateral outrigger span	m	8
Working speed
Boom luffing time	s
Boom full extension time	s
Max. swing speed	r/min	1.8
Max. speed of main winch (single rope) (no load)	m/min	110
Max. speed of aux. winch (single rope) (no load)	m/min

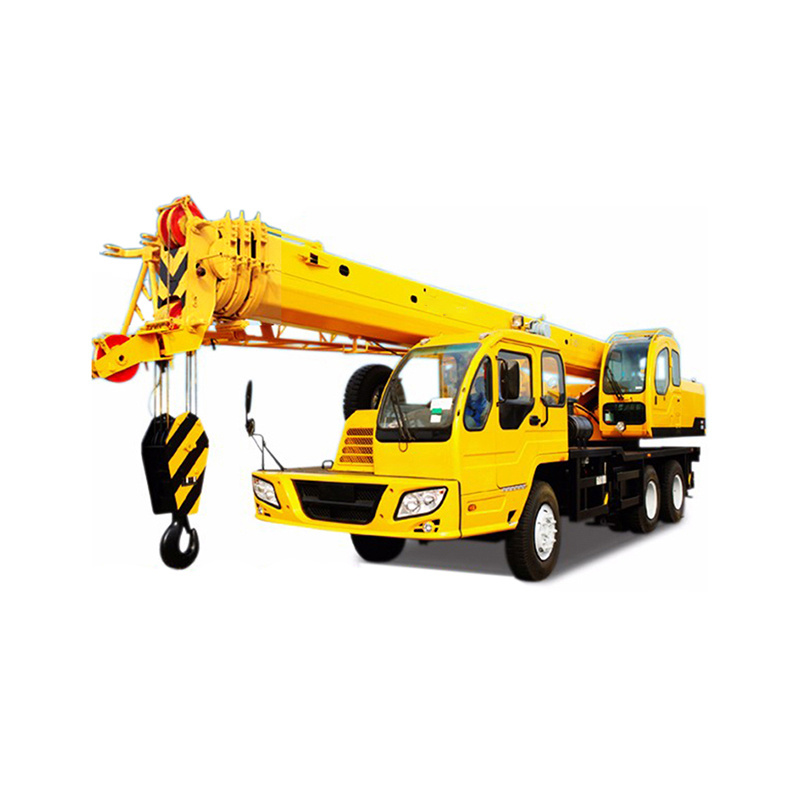

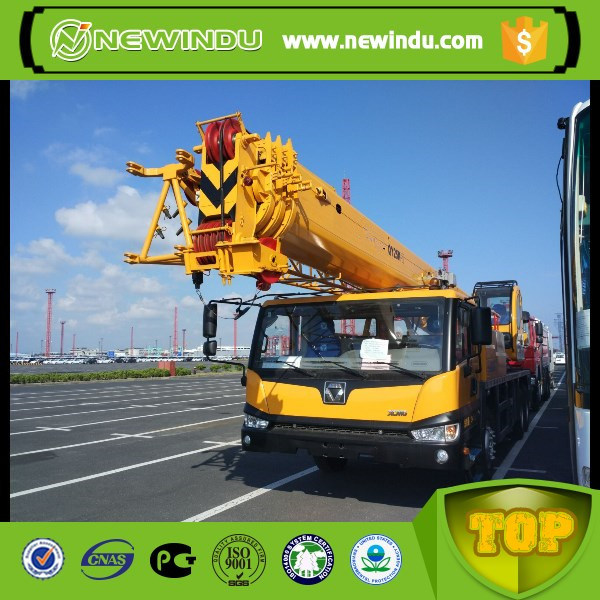

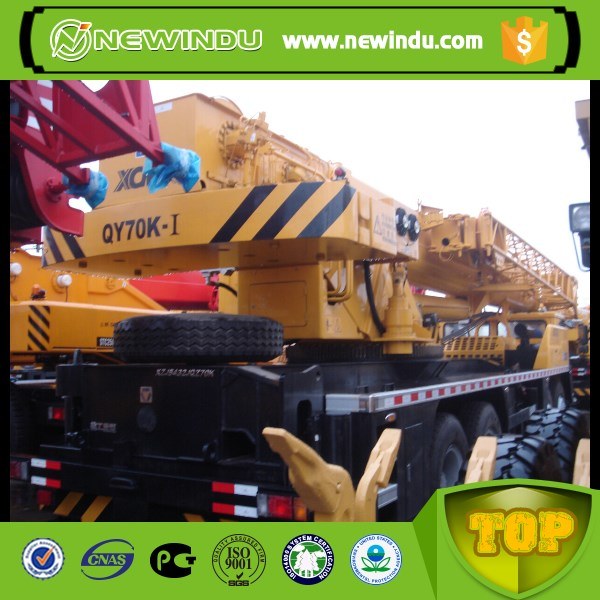

Product photos
