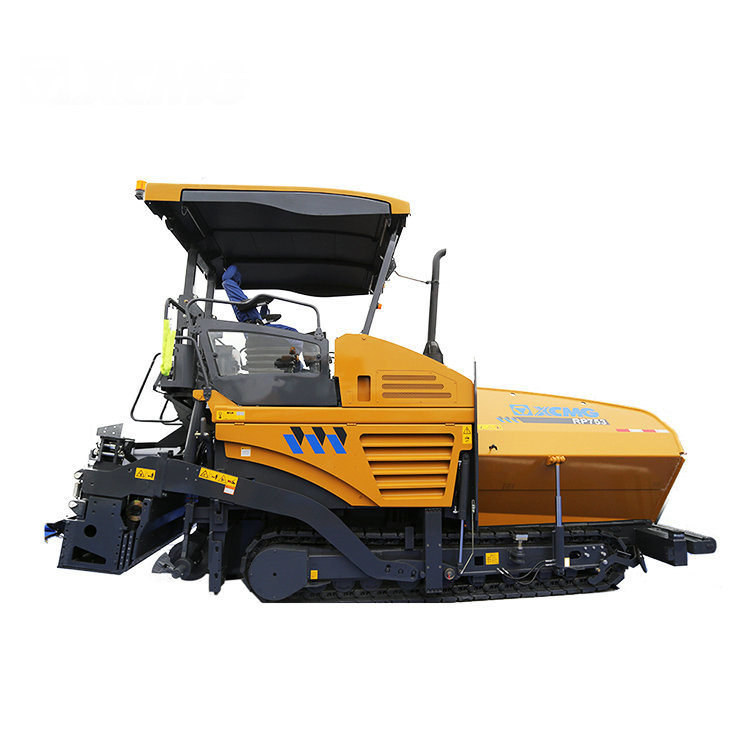

Factory Price Concrete Trowel Construction Machinery Asphalt Crawler Road Paver
Factory Price Concrete Trowel Construction Machinery Asphalt Crawler Road Paver image
Basic Info.
Product Description
Drive left and right independent drive, microcomputer control, constant speed automatic control technology for paving speed, SC7H190 water-cooled supercharged engine of Shangchai (optional Dalian Deutz engine BF6M2012), using a three-in-one powerful composite radiator, left and right transmission, and material distribution Four sets of independent hydraulic system transmissions, high wear-resistant alloy material for the material-discharging blades, imported wear-resistant steel plate for the feeding floor and the screed bottom plate, and the left and right material-dispensing devices can be easily moved up and down to accommodate different paving thicknesses. A horizontal automatic leveling system ensures the flatness of the paving. Centralized lubrication system.
Performance advantages
-Compact structure, flexible control.
The minimum width of the machine body is 2m, which can be used freely at narrow roads.
The hopper is folded from single side, and the pushing wheel can be folded with the hopper synchronically, which improves the pass ability of the machine.
The control panel features centralized control, simple and convenient operation; combined instrument, and the work condition is very clear.
-Excellent performance, wide application
Quick site transfer and paving speed, applicable to the construction of municipal highway and country road as well as the maintenance operation of expressway and various kinds of highways.
With small minimum paving width, it is applicable to the construction work of streets for residential areas and scenic spots.
Equipped with hydraulic telescopic screed, it is applicable to the paving of widened roads.
It adopts rear 4WD, which has large ground adhesive force, applicable to the paving of various kinds of road surface.
The wide hopper is applicable to various kinds of dump vehicle, the storage capacity of the hopper is up to 12t, which ensures successive paving operation.
Specifications of road paver
| Item | RP753 |
| dimension | 6545×2880×4000mm |
| Weight | 18.7-25t |
| Brand | SUPER-ABOVE |
| place of origin | CHINA |
| Driving speed | 0-3km/h |
| Basic pave width | 2.5-7.5m |
| Maximum pave width | 7.5m |
| Maximum layer thickness | 350mm |
| Maximum paving speed | 20m/min |
| Hopper capacity | 14t |
| Maximum laydown rate | 600t/h |
| Rate power | 140/2000 kw/rpm |
We are China Factory Price Concrete Trowel Construction Machinery Asphalt Crawler Road Paver manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
