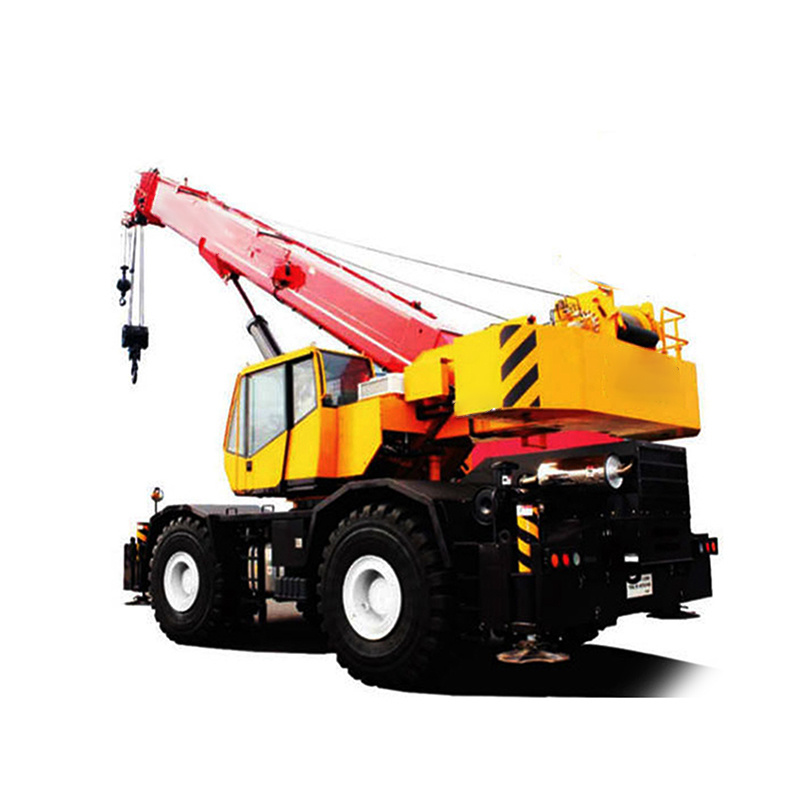

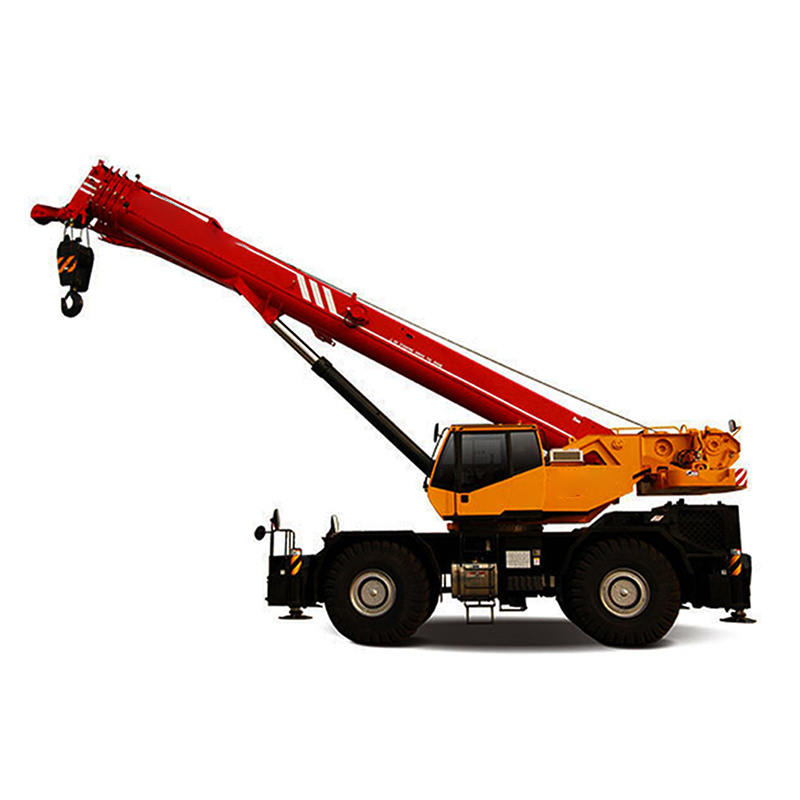

China Brand Hydraulic 65 Ton Rough Terrain Mobile Crane Src650t
China Brand Hydraulic 65 Ton Rough Terrain Mobile Crane Src650t image
Basic Info.
Product Description
• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism,which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
More reliable quality
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Easier to maintain
• The optimizing design of the pipeline traces makes the layout more scientific and reasonable, greatly reducing the dismantling and installing time of the pipelines and the maintenance expense.
• Completely upgrade the electrical system. Adopt anti-creep connector clips, greatly prolonging the service life of the parts.
• The telescoping steel wire rope oriented and protective device avoids the steel wire rope out of the track and broken.
More energy-efficient and environmental friendly
• Adopt double industrial automation control engine, featuring strong power and energy efficiency.
• Under the economical mode, it can meet the engine power requirement of the normal lifting work. Under the high power mode, it can meet the requirement of the high challenge and high efficient lifting work.
• Adopt the advanced matching technique, which makes the design more scientific. It can reduce the consumption of the mechanism, prolong the service life of the machine, and has high residual value.
|
Units
|
SRC600C
|
SRC750
|
|
|
Overall Length
|
mm
|
14300
|
14248
|
|
Overall Width
|
mm
|
3300
|
3340
|
|
Overall Height
|
mm
|
3760
|
3800
|
|
Axle distance
|
mm
|
4000
|
4264
|
|
Wheel distance
|
mm
|
2502
|
2562
|
|
Max. traveling speed
|
km/h
|
40
|
40
|
|
Min. turning radius(2 wheels/4 wheels)
|
m
|
12.3/6.7
|
12.5/7.5
|
|
Min. ground clearance
|
mm
|
500
|
350
|
|
Approach angle
|
°
|
23
|
20
|
|
Depature angle
|
°
|
20
|
19
|
|
Braking distance(24km/h)
|
m
|
75
|
≤9
|
|
Max. gradeability
|
%
|
150
|
75
|
|
Fuel consumption per 100km
|
L
|
150
|
65
|
|
Max.single rope lifting speed of main winch(no load)
|
|
120/130
|
125
|
|
Max. single rope lifting speed of auxiliary winch(no load)
|
s
|
55/75
|
125
|
|
Full extend/ retract time of boom
|
s
|
2.6
|
120/130
|
|
Full raise/lower time of boom
|
s
|
35/30
|
70/100
|
|
Max. slewing speed
|
r/min
|
40/35
|
2
|
|
Machine overall weight
|
kg
|
44980
|
53440
|
|
Front axle load
|
kg
|
24800
|
27600
|
|
Rear axle load
|
kg
|
20180
|
25840
|
|
Engine rated power
|
kw/rpm
|
198/2500
|
210/2500
|
|
Engine rated torque
|
N.m/rpm
|
970/1500
|
970/1500
|
|
Max. lifting capacity
|
kg
|
55
|
75
|
|
Min. lifting radius
|
m
|
3
|
3
|
|
Max. lifting moment- Base boom
|
kN.m
|
2009
|
2529
|
|
Max. lifting moment- Full extend boom
|
kN.m
|
892
|
1232
|
|
Outrigger span(Longitudinal/ Transversal)
|
m
|
7.2*7.2
|
7.4*7.52
|
|
Lifting height-base boom
|
m
|
13.8
|
11.8
|
|
Lifting height-Full extend boom
|
m
|
44.3
|
44.5
|
|
Lifting height-Full extend boom +jib
|
m
|
60.6
|
62.5
|
|
Length-base boom
|
m
|
11.5
|
11.8
|
|
Length-full extend boom
|
m
|
43
|
45
|
|
Length- full extend boom +jib
|
m
|
59
|
61
|
|
Jib offset
|
°
|
0 ° 15 ° 30 °
|
0 ° 20 ° 40 °
|
