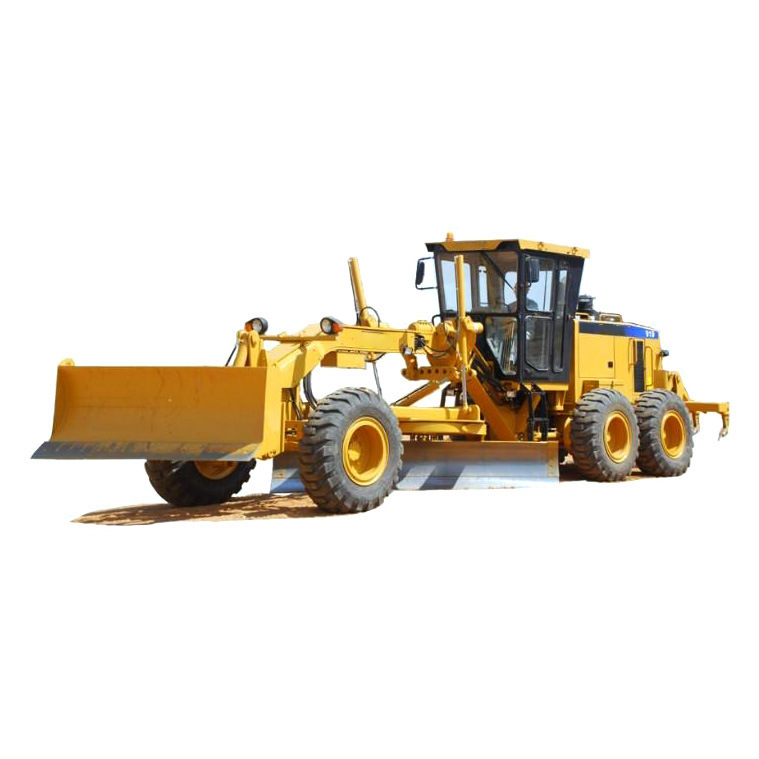

Brand 170HP Motor Grader with Scarifier and Front Blade Sem917
Brand 170HP Motor Grader with Scarifier and Front Blade Sem917 image
Basic Info.
Product Description
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farm-lands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
|
Model
|
SEM917
|
|
Standard
|
13,500 kg / 13,820 kg (With ROPS)
|
|
With Front & Rear Counterweight
|
13,780 kg / 14,100 kg (With ROPS)
|
|
With Front Blade
|
14,130 kg / 14,450 kg (With ROPS)
|
|
With Ripper+Front Blade
|
14,410 kg / 14,730 kg (With ROPS)
|
|
Operating Specifications
|
|
|
Top Speed, Forward
|
40 kph
|
|
Top Speed, Reverse
|
29 kph
|
|
Min. Turning Radius
|
7,300 mm
|
|
Articulation Angle, Left /Right
|
20 °
|
|
Gradeability
|
30 °
|
|
Wheelbase
|
5,830 mm
|
|
Travel Speed, Forward
|
5.3 / 8.2 / 13.3 / 20.3 / 29 / 40 kph
|
|
Travel Speed, Reverse
|
5.3 / 13.3 / 29 kph
|
|
Drawbar Pull
|
78 kN
|
|
Engine
|
|
|
Engine Manufacturer
|
SDEC (ShangHai Diesel)
|
|
Engine Model
|
SC7H170. 1G2B
|
|
Rated Power
|
125 @ 2,200 kN @ RPM
|
|
Max. Torque
|
750 @ 1,400 Nm @ RPM
|
|
Emission
|
Tier 2
|
|
Displacement
|
6.5 L
|
|
Bore
|
105 mm
|
|
Stroke
|
124 mm
|
|
Number of Cylinders
|
6
|
We are China Brand 170HP Motor Grader with Scarifier and Front Blade Sem917 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Motor Graders, Road Grader, Sem917Similar Or Related
