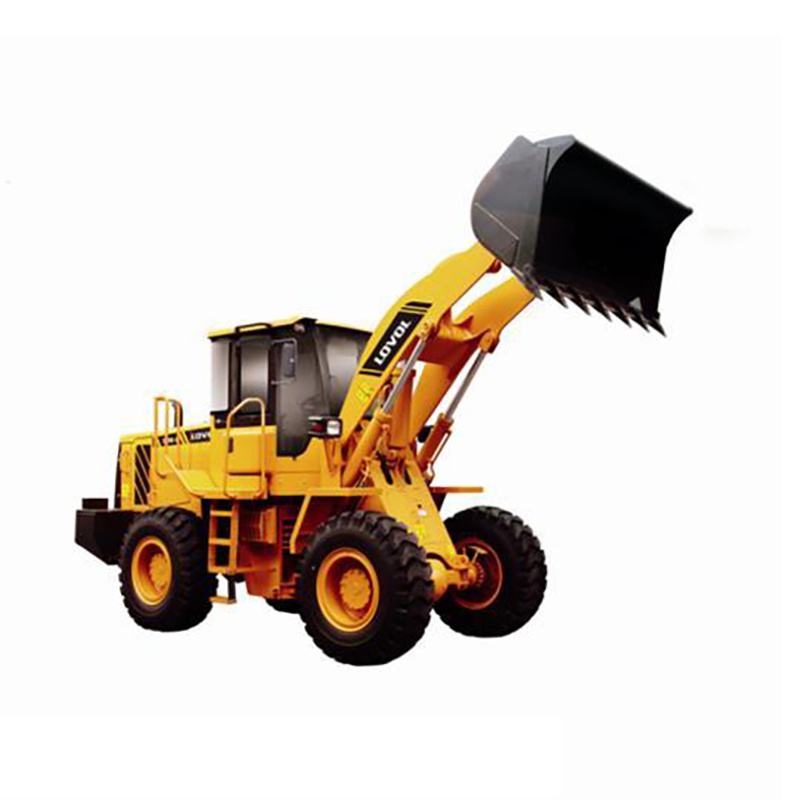

5% Discount Foton Lovol Wheel Loader FL936f 3 Ton Front End Loader

5% Discount Foton Lovol Wheel Loader FL936f 3 Ton Front End Loader image

Get a Quote Email to us

Product Description

Basic Info.

Model NO.

FL936F

Type

Small Loader

Bucket Capacity

1.8cbm

Engine

Yuchai

Operating Weight

10000kg

Engine Power

92kw

Transport Package

N/P

Specification

Trademark

LOVOL

Origin

Shandong

HS Code

84295100

Production Capacity

60sets/ Month

Product Description

5% discount FOTON LOVOL Wheel Loader FL936F 3 ton front end wheel loader

Complete machine parameters
Rated load(kg)	3000
Operating mass (standard)(kg)	10300
Bucket capacity(m³)	1.8
Boom lifting time(S)	5.7
Sum of three items(S)	10.5
Max. traction force(kN)	92
Max. breakout force(kN)	120
Running system
Forward speed range(km/h)	0-37
Backward speed range(km/h)	0-31.5
Gearbox shift	Front : 4 gears rear: 2 gears
Max. gradeability(°)	30
Steering angle(°)	36
Tire model	17.5-25-12PR
Service brake	caliper disc brake
Parking brake	flexible shaft control caliper disc brake
Tire center(mm)	5131
Outside of bucket(mm)	5980
Hydraulic system
Working system pressure(Mpa)	16
Working system displacement(ml/r)	63
Steering system pressure(Mpa)	14
Steering system displacement(ml/r)	63
Hydraulic oil volume(L)	110
Working scope
Outline dimension(mm)	7250×2420×3220
Wheelbase(mm)	2750
Track(mm)	1850
Min. grounding distance (at hinge position)(mm)	375
Max. unloading height(mm)	2990
Unloading distance at max. unloading height(mm)	1100
Engine parameters
Model(Yuchai)	YC6B125-T20
Type(Yuchai)	Six-cylinder, in-line, direct injection, natural inspiration, and water cooling
Rated power(Kw/rpm)(Yuchai)	92/2200
Max. torque / speed(N.m/rpm)(Yuchai)	463/1400-1600
Cylinder bore x stroke(mm)(Yuchai)	Φ108×125
Displacement(L)(Yuchai)	6.871
Fuel consumption rate at rated working condition(g/Kw.h)(Yuchai)	235
Fuel tank capacityt(L)	140
Model(Weichai)	Weichai WP6G125E22
Type(Weichai)	Six-cylinder, in-line, direct injection, turbocharging, and water cooling
Rated power(Kw/rpm)(Weichai)	92/2200
Max. torque / speed(N.m/rpm)(Weichai)	500/1400-1600
Cylinder bore x stroke(mm)(Weichai)	Φ105×130
Displacement(L)(Weichai)	6.754
Fuel consumption rate at rated working condition(g/Kw.h)(Weichai)	225
Model(DCEC)	DCEC 6BT5.9-C130
Type(DCEC)	Six-cylinder, in-line, direct injection, turbocharging, and water cooling
Rated power(Kw/rpm)(DCEC)	97/2200
Max. torque / speed(N.m/rpm)(DCEC)	560/1500
Cylinder bore x stroke(mm)(DCEC)	Φ102×120
Displacement(L)(DCEC)	5.9
Fuel consumption rate at rated working condition(g/Kw.h)(DCEC)	235
Fuel tank capacityt(L)	/

We supply all kinds of Machinery & Equipment of most Chinese big brands like LIUGONG, LOVOL , ZOOMLION, SINOTRUK etc to global market with reasonable
price and best service. Most of products are meet with ISO,CE,EPA,GOST standards.
Our advantages are as following:

1. Professionally export construction machinery and spare parts for more than 12 years to over a hundred countries.
2. Experienced in customs clearance in different ports(countries). Clients type has big contractors, tender, private,rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.

1) ALL kinds of trucks.
(Dump truck, mining dump truck, tractor truck, truck trailer ,towing truck , water tank truck, concrete mixer truck, oil tank truck, garbage truck, cargo truck, port terminal tractor, refrigerated truck, truck mounted crane, fire truck, suction sewage truck, bus , etc)

2) All kinds of construction machinery.
(Wheel loader, excavator, folklift, cranes, paver, road roller etc.)

3) All machines spare parts.

Please contact us freely to get best price and service.

We are China 5% Discount Foton Lovol Wheel Loader FL936f 3 Ton Front End Loader manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
