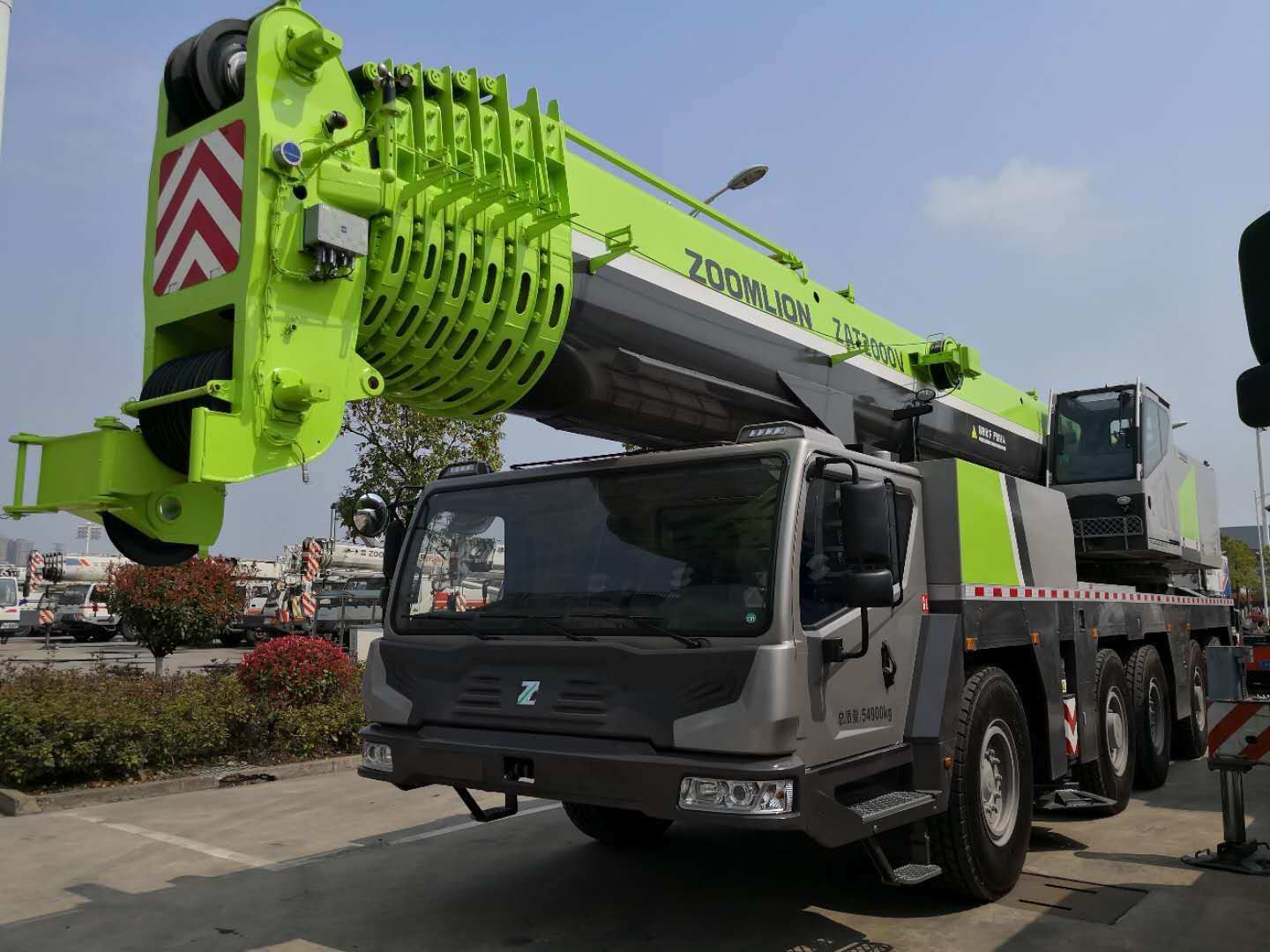

200t Crane Truck Mobile Crane All Terrain Crane Zat2000V
200t Crane Truck Mobile Crane All Terrain Crane Zat2000V image
Basic Info.
Product Description
-
1) The industry’s innovative single-plate head, seven-section oval-shaped 73.5m main boom, and maximum lifting height of 74m. The comprehensive lifting capacity is 0%-8% ahead of products of the same level.
2) Advanced electro-hydraulic proportional control system, the smoothness and micro-movement of the on-vehicle operation have been improved to the leading position in China (the minimum stable speed of rotation is 0.1°/s, the minimum stable speed of lifting is 2m/min); the industry plug pin is stable Excellent sex.
3) The classic transmission chain of the industry, with strong power, adopts 390kW engine; the minimum ground clearance reaches 305mm, and the passability is strong; the independent engine on the car is more reliable and more energy-saving.
4) Advanced multi-axle steering system, full-axle steering, second, fourth, and fifth axle drive, the first and second axles are hydraulic assisted mechanical steering, the third, fourth, and fifth axles are electronically controlled steering; six steering modes, electronically controlled steering System with emergency steering function and neutral lock function.
5) Reserve space for 10 tons of counterweight and two truss booms (17.5m) in the driving state to reduce operating costs
6) The standard goose head frame is shared with the jib connecting frame, with a large working range and high efficiency in changing working conditions.
|
Item |
Unit |
Value |
Remarks |
|
Working performance |
Max. rated lifting capacity |
kg |
55000 |
|
Max. load moment of basic boom |
kN.m |
2009 |
|
|
Max. load moment of main boom(fully extended) |
kN.m |
1050 |
|
|
Max. load moment of basic boom |
m |
12.6 |
|
|
Max. lifting height of main boom |
m |
43.6 |
|
|
Max. lifting height of jib |
m |
59.5 |
|
|
Working speeds |
Max. hoist rope speed(Main winch) |
m/min |
120 |
|
Max. hoist rope speed(Auxiliary winch) |
m/min |
120 |
|
|
Boom demrricking up time |
s |
50 |
|
|
Boom demrricking up time |
s |
95 |
|
|
Slewing speed |
r/min |
0-2.2 |
|
|
Driving |
Max. driving speed |
km/h |
76 |
|
Max. gradeability |
% |
40 |
|
|
Turning diameter |
m |
≤24 |
|
|
Min. ground clearance |
mm |
260 |
|
|
Oil consumption per hundred kilometers |
L |
43 |
|
|
Mass |
Deadweight in driving condition |
kg |
42000 |
|
Complete vehicle kerb mass |
kg |
41870 |
|
|
Front axle load |
kg |
16000 |
|
|
Rear axle load |
kg |
26000 |
|
|
Dimension |
Overall dimensions(L×W×H) |
mm |
13700×2800×3650 |
|
Longitudinal distance between outriggers |
m |
5.92 |
|
|
Transversal distance between outriggers |
m |
Fully extended:7.1, |
|
|
Tail slewing radius |
mm |
3900 |
|
|
Main boom length |
m |
11.4 – 43.0 |
|
|
Main boom angle |
° |
-2 – 80 |
|
|
jib length |
m |
9.5,16.0 |
|
|
Offset |
° |
0,30 |
Product Configuration
