16m Articulating Boom Lifts Battery Boomlift Xga16AC Xga16

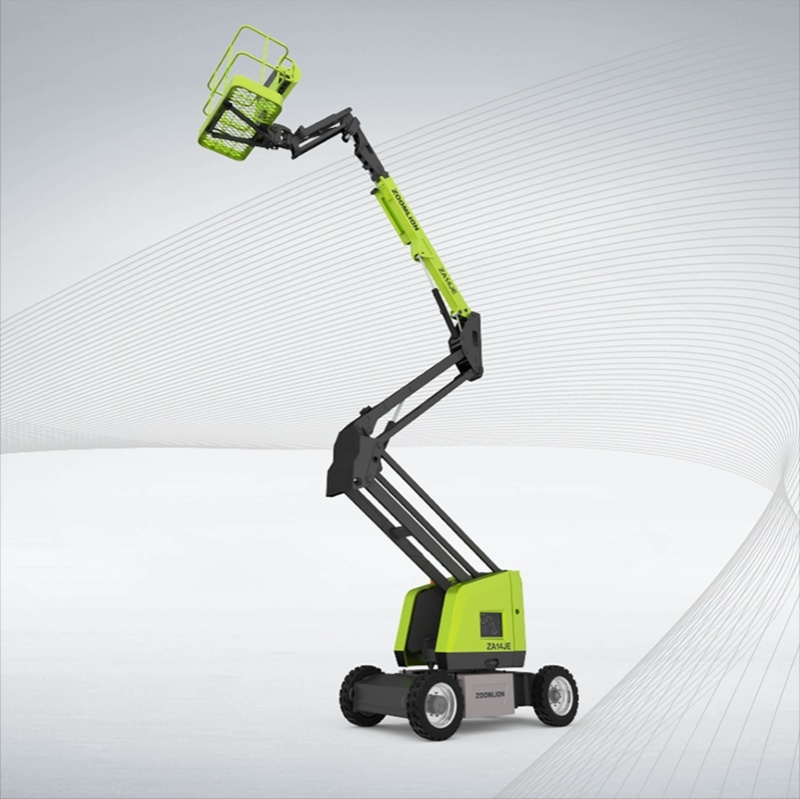

16m Articulating Boom Lifts Battery Boomlift Xga16AC Xga16 image
Basic Info.
Product Description
16m Articulating Boom Lifts Battery Boom Lift XGA16AC
Products Description
* Dual parallel linkage and telescopic arm could realize the dynamic adjustment of the vehicle center of gravity, making the complete vehicle more stable.
* With 4WD, off-road wide tires, and axle balance system, the machine is excellent in drive and adaptability to the road.
* Multi-load envelope control technologies could real-time monitor the load, effectively making use of boom and making its work performance at the leading edge.
* Auto balance extending mechanism improves the safety of extending mechanism and extends the service life of steel rope.
* Electrical control system adopts the distributed control technologies based on PLC and CAN, implementing the auto-leveling, the weighting of platform payload, the dynamic monitoring, and the fault warning.
Product Paramenters
|
Model
|
XGA16
|
XGA16AC
|
XGA20
|
XGA20AC
|
XGA26
|
|
Max. Working Height(m)
|
16.05
|
15.8
|
20.4
|
20.7
|
26.38
|
|
Max. Platform Height(m)
|
14.05
|
13.8
|
18.4
|
18.7
|
24.38
|
|
Max. Working Range(m)
|
8.2
|
8
|
11.9
|
11.98
|
18.9
|
|
Max. Load Capacity(kg)
|
230
|
227
|
230
|
256/350
|
230
|
|
1st Boom luffing Range(°)
|
0~+60
|
0~+60
|
0~+70
|
0~+72
|
-1~+70
|
|
2nd Boom luffing Range(°)
|
-8~+75
|
-8~+75
|
0~+75
|
0~+73
|
-35~+68
|
|
Fly Jib Luffing Range(°)
|
-60~+80
|
-60~+80
|
-65~+70
|
-64~+70
|
-60~+70
|
|
Rotation Angle of Turntable(°)
|
355
|
355
|
360°(Continuous)
|
360°(Continuous)
|
360°(Continuous)
|
|
Rotation Angle of Platform(°)
|
160
|
160
|
160
|
160
|
160
|
|
Max. Tail Wagging(mm)
|
0
|
0
|
0
|
565
|
1330(Boom lifted)
|
|
Max. Travel Speed(km/h)
|
6.1
|
5.2
|
6
|
4.8
|
5
|
|
Min. Turning Radius(m)
|
4.5
|
3.15
|
6
|
5
|
4.2m(Four turn)/ 6.7m(Two turn)
|
|
Min. Ground Clearance(mm)
|
250
|
210
|
230
|
300
|
260
|
|
Max. Grade Ability(%)
|
45
|
30
|
45
|
45
|
45
|
|
Tire Specification(-)
|
33×12-20/7.5 / 315/55D20
|
250-15 / 240/55D17.5 / 250-15/7.00
|
355/55D625 / 36×14-20
|
830×285 / (315/55D20)
|
18/625
|
|
Engine Model(-)
|
404D-22/4D2404
|
/
|
404D-22 / 4D2404
|
/
|
QSF2.8t3TC71
|
|
Rated Power of Engine(kW/(r/min))
|
38/(3000) / 36.3/(2800)
|
/
|
38/(3000) / 36.8/(2700)
|
/
|
53/(2200)
|
|
Battery Specification(V/Ah)
|
/
|
48 /420 (DC)
|
/
|
48/420 (DC)
|
/
|
|
Main Motor Specification(kw/V)
|
/
|
4 /48 (DC)
|
/
|
12/32 (AC)
|
/
|
|
Drive Motor Specification(kw/V)
|
/
|
3.3/32 (AC)
|
/
|
3.3/32 (AC)
|
/
|
|
Total Weight(kg)
|
7100
|
6500
|
10600
|
9100
|
17800
|
|
Platform Size(mm)
|
1830×760×1150
|
700×1400×1150
|
1830×760
|
1800×760
|
2400×900
|
|
a Overall Length(mm)
|
6690
|
6420
|
9080
|
8490
|
11280
|
|
b Overall Width(mm)
|
2260
|
1750
|
2490
|
2490
|
2490
|
|
c Overall Height(mm)
|
2130
|
2000
|
2680
|
2380
|
3000
|
|
d Wheel Base(mm)
|
2100
|
2010
|
2500
|
2500
|
3000
|
|
Transportation Width(mm)
|
/
|
/
|
/
|
2270
|
/
|
